Keg Flow Rack

Keg Flow Rack

A high-density, beverage storage system

Efficient Brewery Inventory Management with Customizable Keg Flow Racking System from Steel King

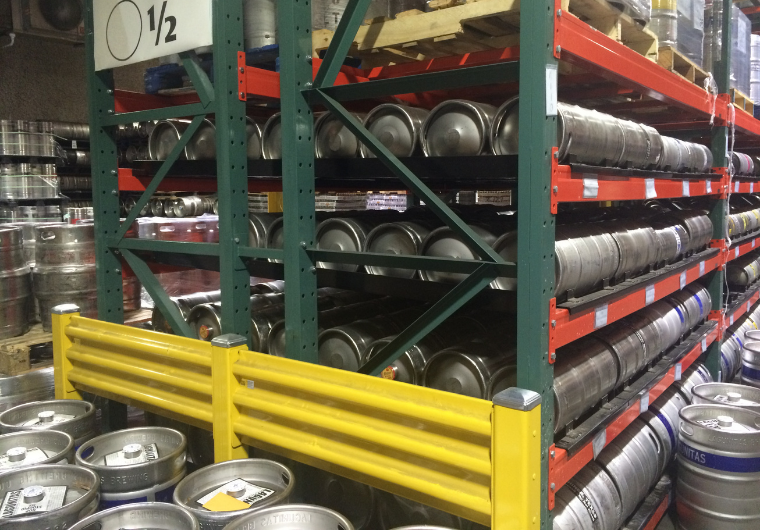

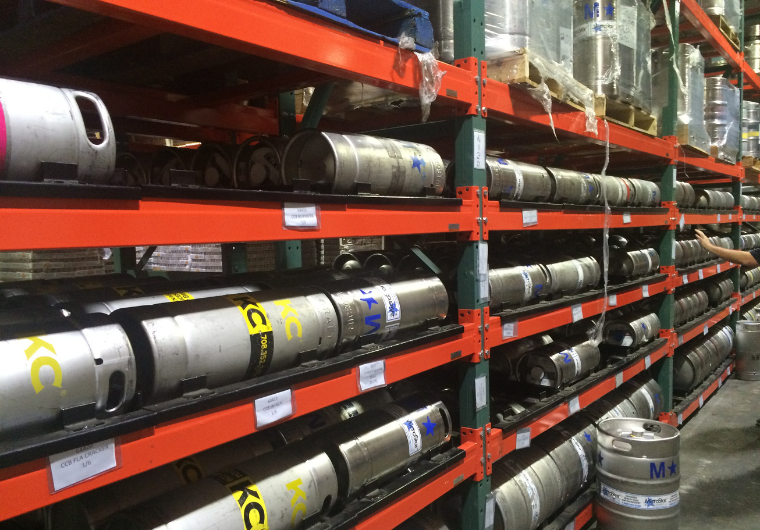

Steel King’s Keg Flow, is a customizable flow-racking storage system designed for brewery applications. The gravity-fed rollers form keg flow lanes that accommodate a sixth-barrel size. Ideal for First In/First Out inventory rotation, this pallet flow racking system allows you to easily store multiple product SKUs in a way that opens up valuable floor space. This way, your product is always easily accessible, with ergonomic access from either the front or back of the unit at any time. The Keg Flow system is easily installed with just two people, making it an ideal storage rack solution.

Request a Quote for Keg Flow RackRequest A Quote

Versatility With A Flow Through Racking System

Multiple configuration options are available with up to two levels of roller system and up to two levels of traditional storage above.

• Durable, all-steel keg flow insert works with most pallet rack systems. Add to the new or existing rack for an affordable keg storage upgrade.

• 24″ wide flow lane is perfect for 1/6 barrel kegs, the most common craft keg size, so it can accommodate most of your craft brew inventory.

• Provides greater storage density with more pick faces than traditional pallet storage. Get more out of your valuable warehouse space.

• Significantly improves picking efficiency. SKUs stay organized in separate lanes, and kegs roll to the front of the rack for safer, more comfortable handling.

• Simplifies first-in, first-out product flow: load kegs in the back of the rack and pick from the front. Front-loading is also possible on shorter rack depths.

Discover how the Keg Flow Rack System from Steel King can enhance your processes by contacting us today. Don’t forget to watch our video demonstration below to see firsthand how this system can improve your operations.

Specifications

Available configurations:

Half Pint – 2 levels of 1/6 barrel keg storage
Pint – 2 levels of 1/6 barrel keg storage and one storage rack above (6,000 lbs. maximum)*
Longneck – 2 levels of 1/6 barrel keg storage and two storage racks above (6,000 lbs. maximum per rack)*

Depth: 42″
Height: 96″
Width: 48″, 96″, 108″

*This maximum size configuration is only for non-seismic zones (A, B). Consult us for custom system designs to meet seismic zone requirements.

Available Colors

Steel King racking is painted with a high-durability powder coat paint finish.
Powder coated products offer better resistance to water and corrosion, better gloss, hardness, and adhesion. In fact, Steel King powder coated products give you:

60% Greater Resistance to Solvents
74% Greater Resistance to Salt Spray
94% Greater Impact Resistance

As a Steel King customer, this means that your equipment looks better, requires less maintenance, and lasts longer. Buying Steel King powder coated products is better for the environment too, because unlike liquid paints, powder coat paints do not emit fumes into the air.

Products come in 13 standard colors. Custom colors are also available.

Castle Gray*

Yellow*

Vista Green*

Precaution Blue*

Poppy Orange*

Mist White

Platinum

Kelly Green

Arctic Blue

Apricot

Navy Blue
