SK3000 Structural Rack

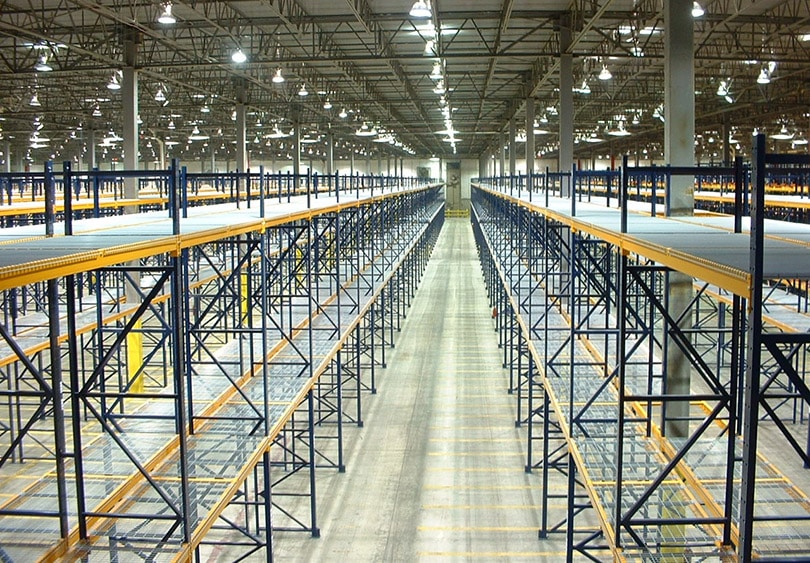

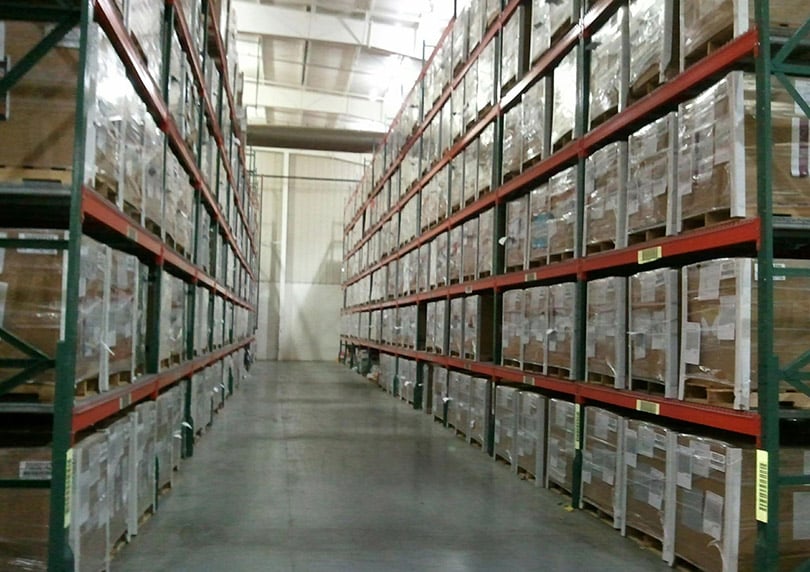

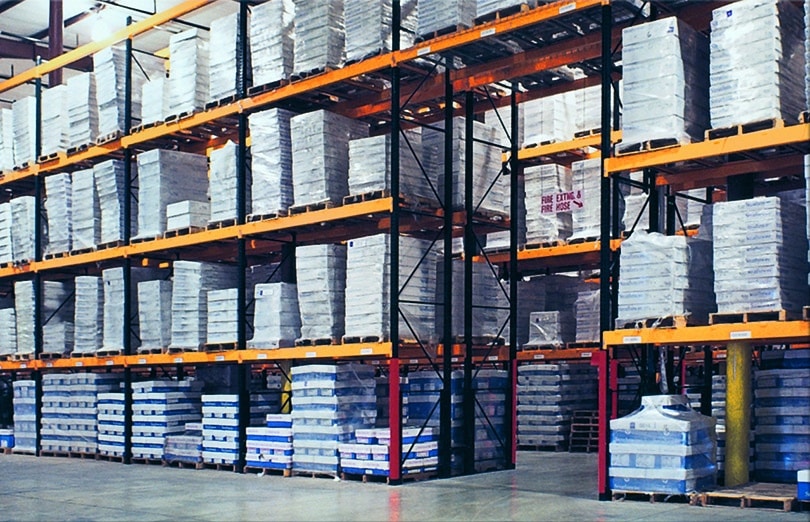

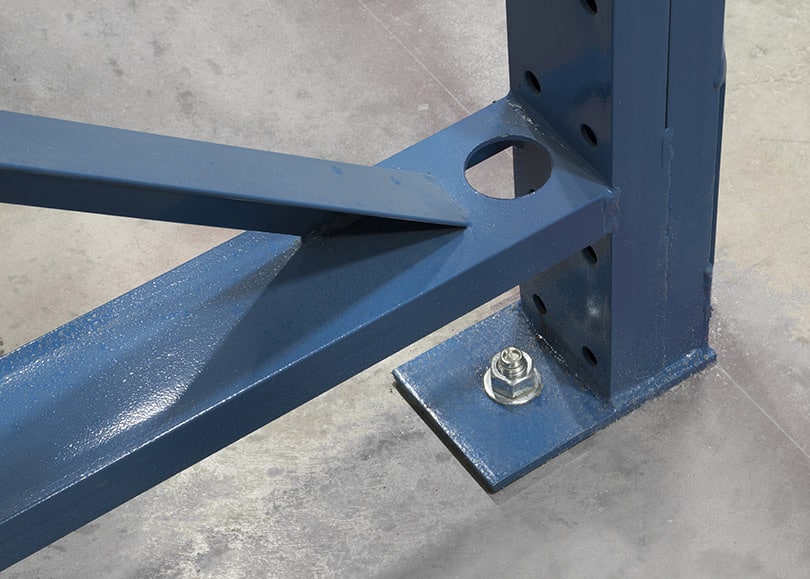

Structural storage rack is fabricated using hot-rolled structural steel channels for uprights and beams. A heavy-duty lower horizontal brace and welded foot protector are standard on structural pallet rack systems. Steel King’s SK3000® pallet racks are finished with long-lasting powder coating, providing durability even under the most demanding conditions.

Structural configurations are also used in Drive-In, Pallet Flow and Pushback High-Density Pallet Rack systems.

Steel King’s SK3000 pallet racking provides greater overall strength and rigidity because it’s manufactured of high C-channel structural steel. With a longer service life, lower maintenance costs and improved safety, SK3000 is a high performing material handling rack and the best value in structural pallet racks available.

SK3000 Structural Rack is a modular system, providing the flexibility to fit a wide variety of applications and expands easily as your storage requirements grow.

What sets SK3000® apart?

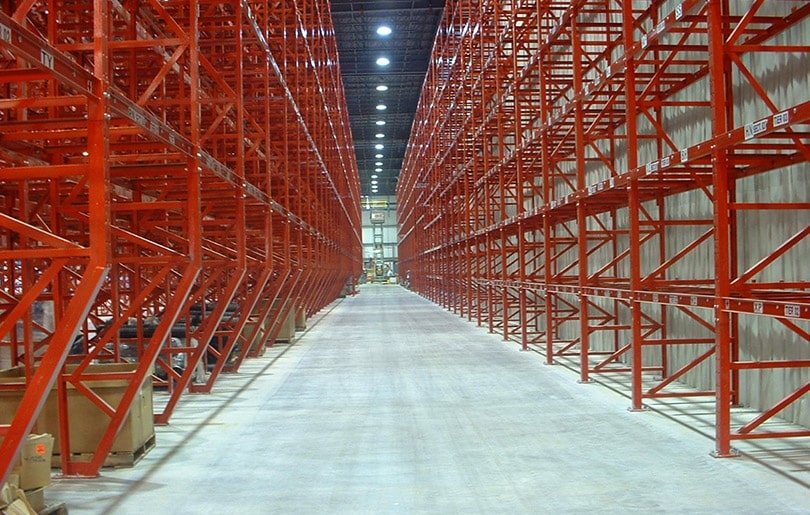

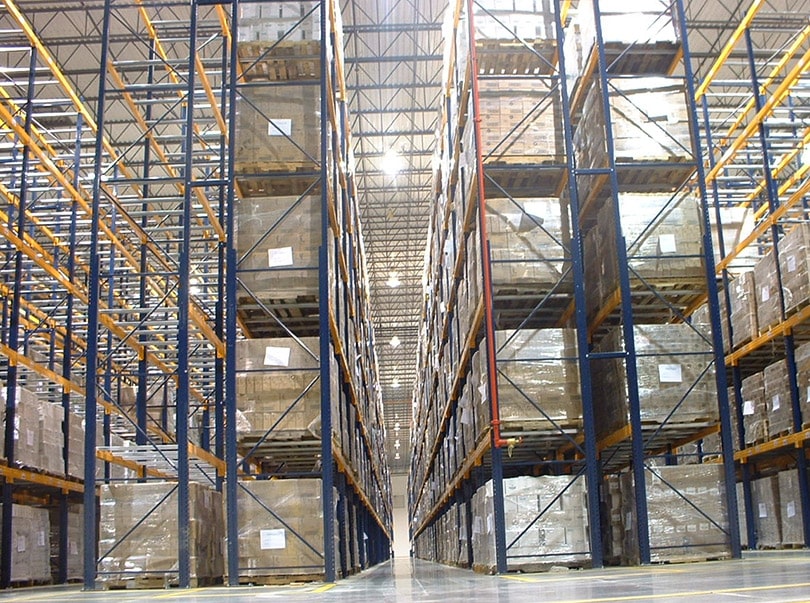

Upright frame columns are available in 3″, 4″ or 5″ options. Structural channel steel construction enables greater resistance to fork lift impact damage while increasing load carrying capacity and resistance to seismic forces. Structural angle is used in the full horizontal and diagonal bracing.

Beams are manufactured with high-strength steel and are one piece, seamless, and continuously welded with full vertical weld.  Bolted beams are easily adjustable in 2″ vertical increments.

Column-to-beam connections are made with a heavy 7 gauge wrap-around connector plate that helps square the rack for tighter connection. Using two bolts per beam provides 57% more strength than single bolt designs. Grade 5 hardware provides greater shear strength for your system. The bolted connections are designed to exceed RMI standards.

Top to bottom, the strength of SK3000 is evident. Standard footpads are made of 7 gauge steel plates and are welded to each column, efficiently dispersing floor loads. A heavier duty footpad is also available.

Powder coat paint finish is not only appealing, it is more durable against impact damage, and more resistant to chemicals, chips and scratches than liquid coating.

It is evident that structural channel rack is the system of choice for many applications because of its heavy load capacity and superior abuse resistance and can be used in any of the following applications:

Contact us today to learn more about this versatile warehouse rack.

Steel King racking is painted with a high-durability powder coat paint finish.

Powder coated products offer better resistance to water and corrosion, better gloss, hardness, and adhesion. In fact, Steel King powder coated products give you:

  • 60% Greater Resistance to Solvents
  • 74% Greater Resistance to Salt Spray
  • 94% Greater Impact Resistance

As a Steel King customer, this means that your equipment looks better, requires less maintenance, and lasts longer. Buying Steel King powder coated products is better for the environment too, because unlike liquid paints, powder coat paints do not emit fumes into the air.

Products come in 13 standard colors. Custom colors are also available.

Mist White Vista Green
Platinum Kelly Green
Yellow Arctic Blue
Apricot Precaution Blue
Poppy Orange Navy Blue
Fire Engine Red Black
Castle Gray   Steel King color chart
