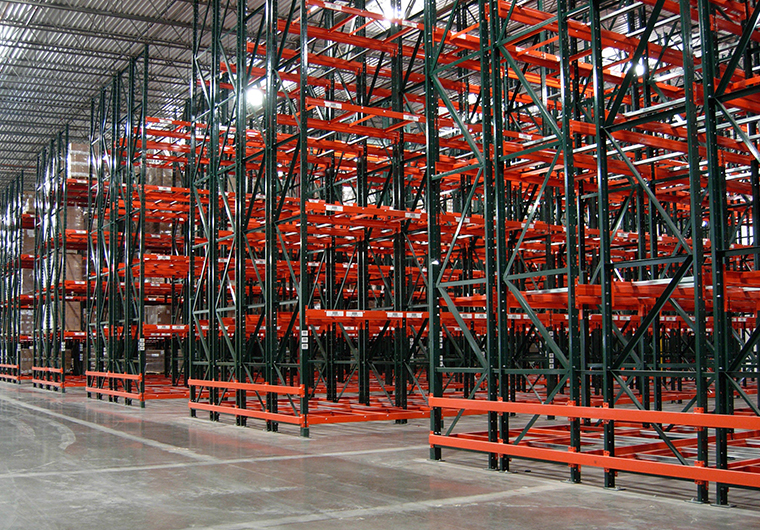

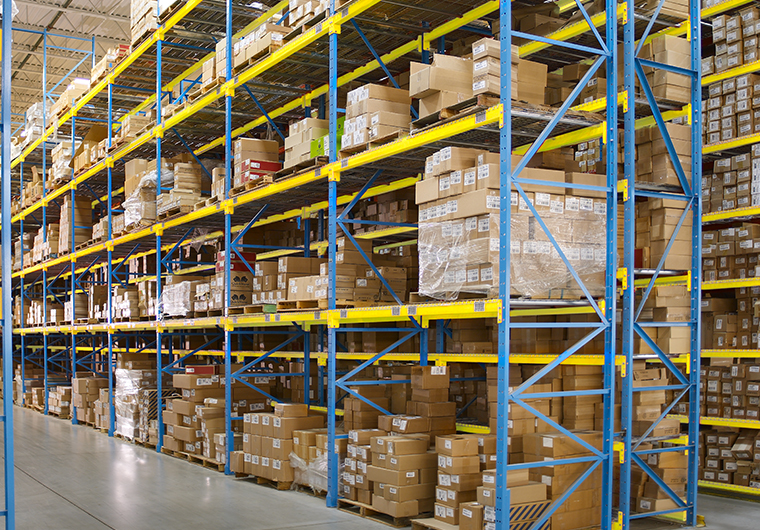

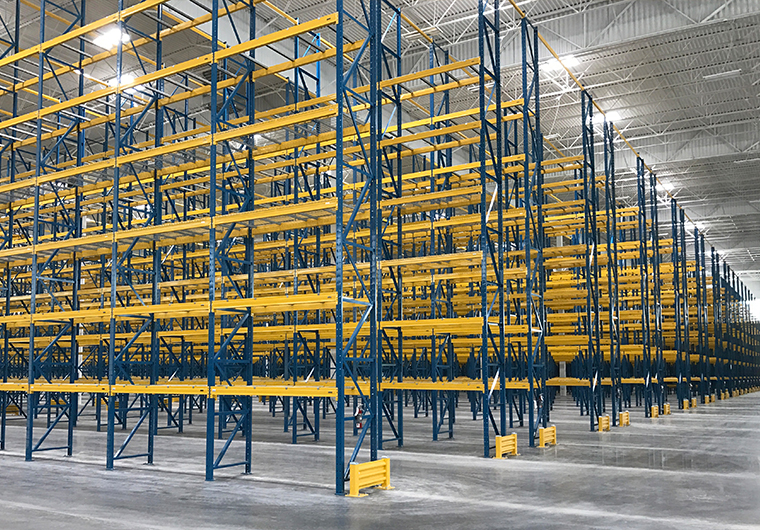

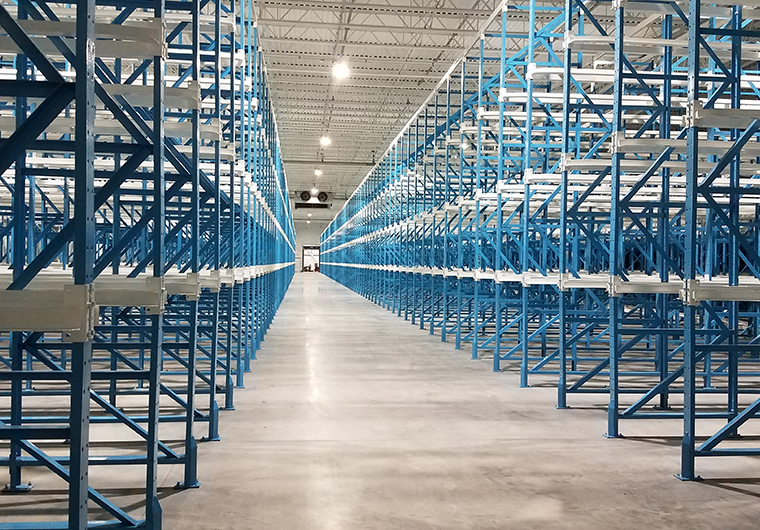

SK3000 Structural Pallet Rack

Steel King SK3000 structural storage rack is fabricated using hot-rolled structural steel channels for uprights and beams. Steel King’s SK3000 structural pallet racks are finished with long-lasting powder coating, providing durability even under the most demanding conditions. Similar structural configurations are also used in Drive-In, Pallet Flow, and Pushback High-Density Pallet Rack systems.

What sets the SK3000 apart from other systems?

Steel King’s SK3000 structural pallet racking provides greater overall strength and rigidity because it’s manufactured of high strength C-channel structural steel. With a longer service life, lower maintenance costs, and improved safety, SK3000 is a high-performing material handling rack and the best value in structural pallet racks available. SK3000 structural rack is a modular system, providing the flexibility to fit a wide variety of applications and expands easily as your storage requirements grow.

Strong and durable, even under the most demanding conditions.

With greater overall strength and rigidity from C-channel structural steel, it delivers a longer service life, lower maintenance costs, and improved safety, making it the best value in structural pallet racks available.

Beyond racking, the best investment you can make for your personnel, equipment and inventory is safety equipment. Steel King carries a full line of guard rail, rack column protectors and other safety products that protect your investments.

Request a Quote for SK3000 Structural Pallet RackRequest A Quote

Durable, Flexible, and High-Strength Design.

Top to bottom, the strength of SK3000 is evident. Standard footpads are made of 7 gauge steel plates and are welded to each column, efficiently dispersing floor loads. A heavier-duty footpad is also available. Steel King’s structural racking is also manufactured with high-strength steel and is one-piece, seamless, and continuously welded with full vertical weld.  Bolted beams are easily adjustable in 2″ vertical increments.

Our upright frame columns are available in 3″, 4″ or 5″ options. Structural channel steel construction enables greater resistance to forklift impact damage while increasing load-carrying capacity and resistance to seismic forces. Structural angle is used in the full horizontal and diagonal bracing.

Column-to-beam connections are made with a heavy 7 gauge wrap-around connector plate that helps square the rack for a tighter connection. Using two bolts per beam provides 57% more strength than single bolt designs. Grade 5 hardware provides greater shear strength for your system. The bolted connections are designed to exceed RMI standards.

Product Documents

SK3000 Brochure

Pallet Rack User Manual

SK3000 Installation Guide

SK3000 2-year Warranty

Available Colors

Steel King racking is painted with a high-durability powder coat paint finish.
Powder coated products offer better resistance to water and corrosion, better gloss, hardness, and adhesion. In fact, Steel King powder coated products give you:

60% Greater Resistance to Solvents
74% Greater Resistance to Salt Spray
94% Greater Impact Resistance

As a Steel King customer, this means that your equipment looks better, requires less maintenance, and lasts longer. Buying Steel King powder coated products is better for the environment too, because unlike liquid paints, powder coat paints do not emit fumes into the air.

Products come in 5 standard (see asterisks below) and 8 premium colors. Custom colors are also available.

Castle Gray*

Yellow*

Vista Green*

Precaution Blue*

Poppy Orange*

Mist White

Platinum

Kelly Green

Arctic Blue

Apricot

Navy Blue
